In industrial laser applications like marking, engraving, and micromachining, precision and speed are critical. When it comes to laser scanning systems, the role of the F-theta lens cannot be overstated. It serves as the essential optical component that makes sure the laser beam hits its target accurately and uniformly, regardless of its position in the scanning field.
At first glance, one might assume a typical lens could serve this function. After all, focusing light is what lenses are meant to do. But in scanning systems, the beam is deflected by galvanometer mirrors, rotating at varying angles. These angles translate into beam positions on a flat working surface. Without the F-theta lens, the focused laser spot would not maintain a linear relationship with the deflection angle—it would result in distorted shapes, misaligned engravings, and non-uniform energy distribution.
That’s where the F-theta lens comes into play.

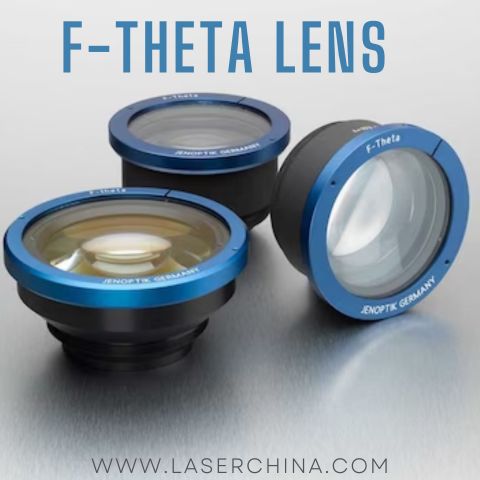

What Is an F-theta Lens?
The term “F-theta” originates from the mathematical relationship between the scan angle (θ) and the position of the laser spot on the target surface. In a well-designed F-theta lens, the distance from the optical center to the image point is directly proportional to the tangent of the scan angle (f * tan θ). This means the scan field becomes a flat, two-dimensional working plane.
Unlike standard lenses that focus beams to a single focal point, an F-theta lens is designed to create a flat field. This design is crucial when a laser beam is deflected over a wide area using galvanometric scanners. Without it, the beam would not remain perpendicular to the work surface, especially at the edges, resulting in inconsistent markings or even defocused spots.
Why the Circular Path Becomes Linear
Laser beams, when deflected by galvo mirrors, move in angular motions. Think of this movement as a part of a circular arc. If a standard lens were used, the focal point would move along a curved surface, which is not ideal for flat work surfaces. However, the F-theta lens corrects this by adjusting the beam’s path so that the focused spot appears to move in a straight line across a flat field. It’s a calculated distortion that compensates for the natural arc of beam movement.
This correction ensures that the scanned line is flat and uniform. That’s why an F-theta lens is the gold standard in systems where laser precision over a 2D surface is critical—like QR code marking, PCB engraving, or metal part serialization.
Construction of an F-theta Lens
F-theta lenses are complex multi-element assemblies, typically made of fused silica or other high-transmission optical glass. They’re coated to reduce reflection losses, increase resistance to high-powered lasers, and maintain stable performance across wavelengths.
The lens design considers factors like:
- Wavelength compatibility (e.g., 1064 nm for fiber lasers, 355 nm for UV lasers)
- Scan field size (e.g., 100×100 mm, 300×300 mm)
- Spot size and resolution
- Working distance
Each of these parameters must be tightly controlled to match the application and laser source. The lens curvature and coating vary depending on whether it’s for infrared, visible, or ultraviolet laser systems.
Integration in Laser Systems
In laser marking or welding systems, the laser beam first passes through a beam expander or collimator. Then it enters a galvanometer scanner, which uses two mirrors to direct the beam along X and Y axes. After deflection, the beam enters the F-theta lens. The lens then focuses it onto the workpiece, ensuring the beam remains in focus across the entire field.
The reason manufacturers prefer the F-theta lens in this configuration is due to its ability to maintain beam consistency. Without it, even high-precision scanners would produce skewed or blurry results at the edges of the field.
The focal length of the lens determines the working distance—the space between the lens and the material. A shorter focal length gives a smaller spot size and higher resolution but a smaller scan area. A longer focal length provides a larger marking field but with a slightly larger spot size. Choosing the right F-theta lens depends on balancing these trade-offs according to the task.
Application-Specific Considerations
When integrating an F-theta lens into a system, one must consider:
- Material type: For metals, plastics, or ceramics, different spot sizes and energy densities are optimal.
- Power density: High-powered lasers require lenses with high-damage-threshold coatings.
- Beam quality (M² factor): The better the beam quality, the tighter and more uniform the spot.
- Thermal stability: In high-duty-cycle operations, lens material and mounting must withstand heat buildup.
Whether it’s marking engine blocks, engraving medical instruments, or etching barcodes on packaging, the F-theta lens ensures every mark is sharp, aligned, and repeatable.
Impact on Production Efficiency
In high-speed production lines, downtime for recalibration or focus adjustment is costly. The F-theta lens minimizes such interruptions. Once calibrated, it requires minimal adjustment, allowing automated systems to run smoothly with fewer errors.
It also supports variable content marking. Whether you’re placing serial numbers, QR codes, or custom graphics, the beam remains precisely focused across the entire field—ensuring consistent results regardless of position.
Moreover, since the beam remains perpendicular across the surface, it reduces defects due to skewed angles or energy loss. This results in cleaner engravings, deeper etching when needed, and more legible marks.
Selection Guide for Engineers
Choosing the correct F-theta lens is more than a technical checklist—it’s a matter of aligning optical performance with business outcomes.
Ask the following:
- What wavelength does your laser source emit?
- What is your desired scan field size?
- What are the acceptable spot sizes and energy densities?
- What materials are being processed?
For example, a 1064 nm F-theta lens with a 160 mm focal length is ideal for many fiber laser applications in the 100×100 mm field range. But for applications requiring larger coverage, a 254 mm or 330 mm focal length may be more appropriate.
Maintenance and Durability
F-theta lenses are not immune to contamination. Dust, oil vapors, or metal particles can degrade their transmission quality. A contaminated lens not only reduces marking quality but may also cause thermal stress or lens cracking due to energy absorption.
Routine maintenance includes:
- Cleaning with lens-grade ethanol or isopropyl alcohol using lint-free wipes
- Storing in dust-free enclosures
- Avoiding direct contact with lens surfaces during system adjustments
Proper handling extends operational life and preserves marking accuracy over thousands of cycles.
Final Thoughts
The F-theta lens plays a critical role in converting rotary mirror motions into precise, flat-field scanning—something no conventional lens can achieve. Its design allows laser systems to perform consistent, high-speed, high-resolution tasks across a wide range of industrial applications. Whether you’re in automotive, electronics, aerospace, or medical device manufacturing, integrating the right F-theta lens will unlock better control, sharper detail, and dependable results in every operation.
