The Crankcase Filter Ram 3500, particularly those equipped with Cummins diesel engines, plays a crucial role in maintaining engine health and longevity. Often overlooked, this small but mighty component is essential for filtering blow-by gases and preventing oil contamination. Understanding its function, replacement, and the benefits of an upgraded system can save Ram 3500 owners significant headaches and expenses down the road.
What is Blow-by and Why is it a Problem?
Blow-by refers to the combustion gases that escape past the piston rings and into the crankcase. While some blow-by is normal, excessive amounts can be detrimental. These gases contain unburnt fuel, soot, water vapor, and other contaminants. Without proper ventilation and filtration, these substances would mix with the engine oil, leading to:
- Oil Contamination and Degradation: Blow-by dilutes and contaminates the engine oil, reducing its lubricating properties and accelerating wear on internal components.
- Sludge Formation: The contaminants can combine with oil to form sludge, which can block oil passages and lead to oil starvation in critical areas.
- Increased Crankcase Pressure: If not vented, the pressure from blow-by gases can build up in the crankcase, potentially leading to oil leaks past seals and gaskets.
- Emissions Issues: Unfiltered blow-by gases can be released into the atmosphere, contributing to air pollution.
The Role of the Crankcase Ventilation System
To combat blow-by, engines are equipped with a crankcase ventilation system. In modern diesel engines like those in the Ram 3500, this often involves a closed crankcase ventilation (CCV) system. The CCV system routes blow-by gases through a filter, where oil mist and other particulates are separated out, before returning the cleaned gases back into the engine’s intake to be re-combusted. This design prevents the release of harmful emissions into the atmosphere and helps maintain engine cleanliness.

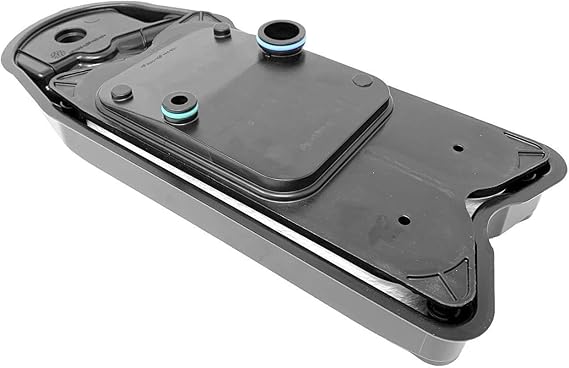

The Crankcase Filter: A Critical Component
Within the CCV system, the crankcase filter (also known as the crankcase ventilation filter, CCV filter, or coalescing filter) is the primary component responsible for separating oil from the blow-by gases. It typically consists of a fibrous media that traps oil droplets while allowing the gases to pass through. Over time, this filter becomes saturated with oil and contaminants, reducing its effectiveness and potentially leading to increased crankcase pressure and oil carryover into the intake.
When to Replace Your Ram 3500’s Crankcase Filter
The replacement interval for the Ram 3500 crankcase filter can vary depending on the year, engine, and driving conditions. However, a common recommendation for Cummins diesel engines is every 67,500 miles or 3 years, whichever comes first. It’s crucial to consult your owner’s manual or a reputable service manual for the exact specifications for your specific Ram 3500 model year.
Signs that your crankcase filter might need replacement include:
- Increased oil consumption: While not always solely attributable to the crankcase filter ram 3500, a clogged filter can contribute to oil carryover and consumption.
- Oil leaks: Excessive crankcase pressure due to a clogged filter can force oil past seals and gaskets.
- Reduced engine performance: Although less common, a severely clogged filter can indirectly affect engine performance.
- Check engine light: In some cases, a clogged CCV system can trigger a diagnostic trouble code.
Upgrading Your Ram 3500 Crankcase Filter System
For Ram 3500 owners looking for enhanced engine protection and reduced maintenance, aftermarket crankcase ventilation systems offer significant advantages. These systems often feature:
- Improved Filtration Efficiency: Aftermarket filters typically boast higher filtration efficiency, better trapping oil mist and contaminants.
- Larger Capacity: Some designs offer a larger filtration media, extending the service interval and reducing the frequency of replacements.
- Oil Separators/Catch Cans: Many upgraded systems incorporate an external oil separator or catch can, which more effectively separates oil from the blow-by gases and collects it in a reservoir for easy draining. This prevents oil from re-entering the intake system, keeping the intake manifold and turbocharger cleaner.
- Enhanced Durability: Aftermarket components are often built with more robust materials, designed to withstand the harsh environment of the engine bay.
Benefits of upgrading include:
- Cleaner Engine Internals: Reduced oil contamination in the intake leads to a cleaner intake manifold, turbocharger, and intercooler, improving efficiency and longevity.
- Reduced Carbon Buildup: Less oil entering the combustion chambers means less carbon buildup on valves and pistons.
- Extended Oil Life: By removing more contaminants, the engine oil stays cleaner for longer, potentially extending oil change intervals.
- Reduced Emissions: While the OEM system is designed to meet emissions standards, an upgraded system can further minimize oil carryover, contributing to cleaner exhaust. Watch it
Conclusion
The crankcase filter on your Ram 3500 is a small . Vital component in maintaining the health and longevity of your Cummins diesel engine. Regular replacement according to the manufacturer’s recommendations is essential. For those seeking superior engine protection and reduced maintenance . Investing in an upgraded crankcase ventilation system can provide significant long-term benefits, ensuring your Ram 3500 continues to perform reliably for years to come.
